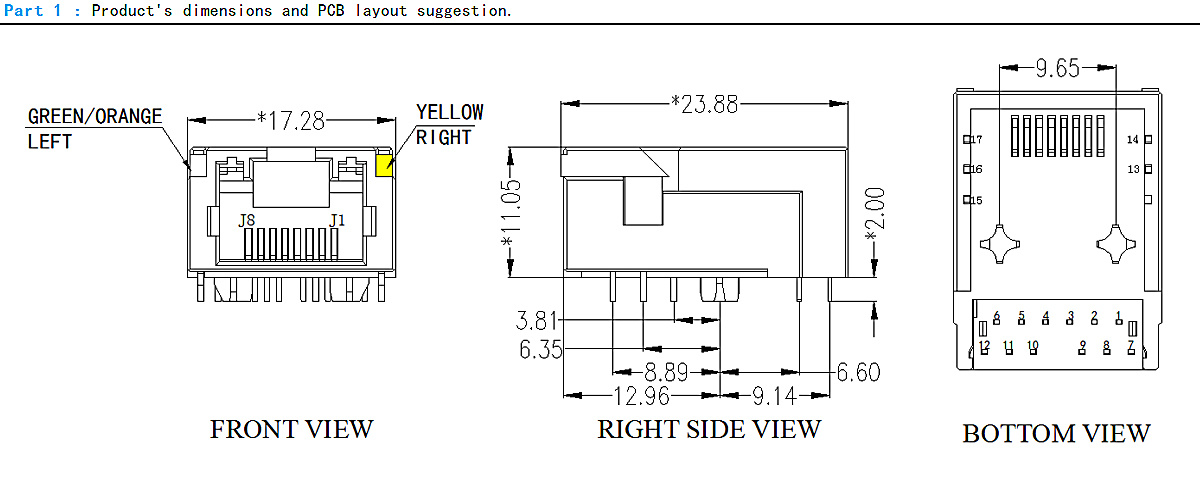

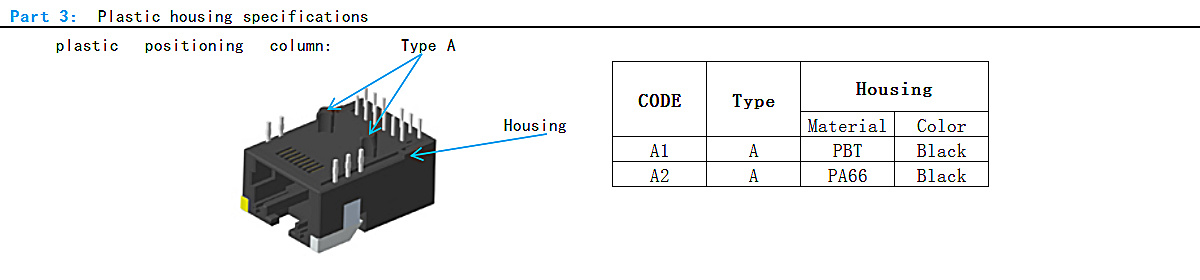

RJ45 Single Port;TAB-UP ; L=24.13mm ; With LED ; Without metal shield . PCB Retaining Post :solid(Type A)

Connector type:

RJ45

Number of Ports:

single ports

Clamp direction:

TAB-UP

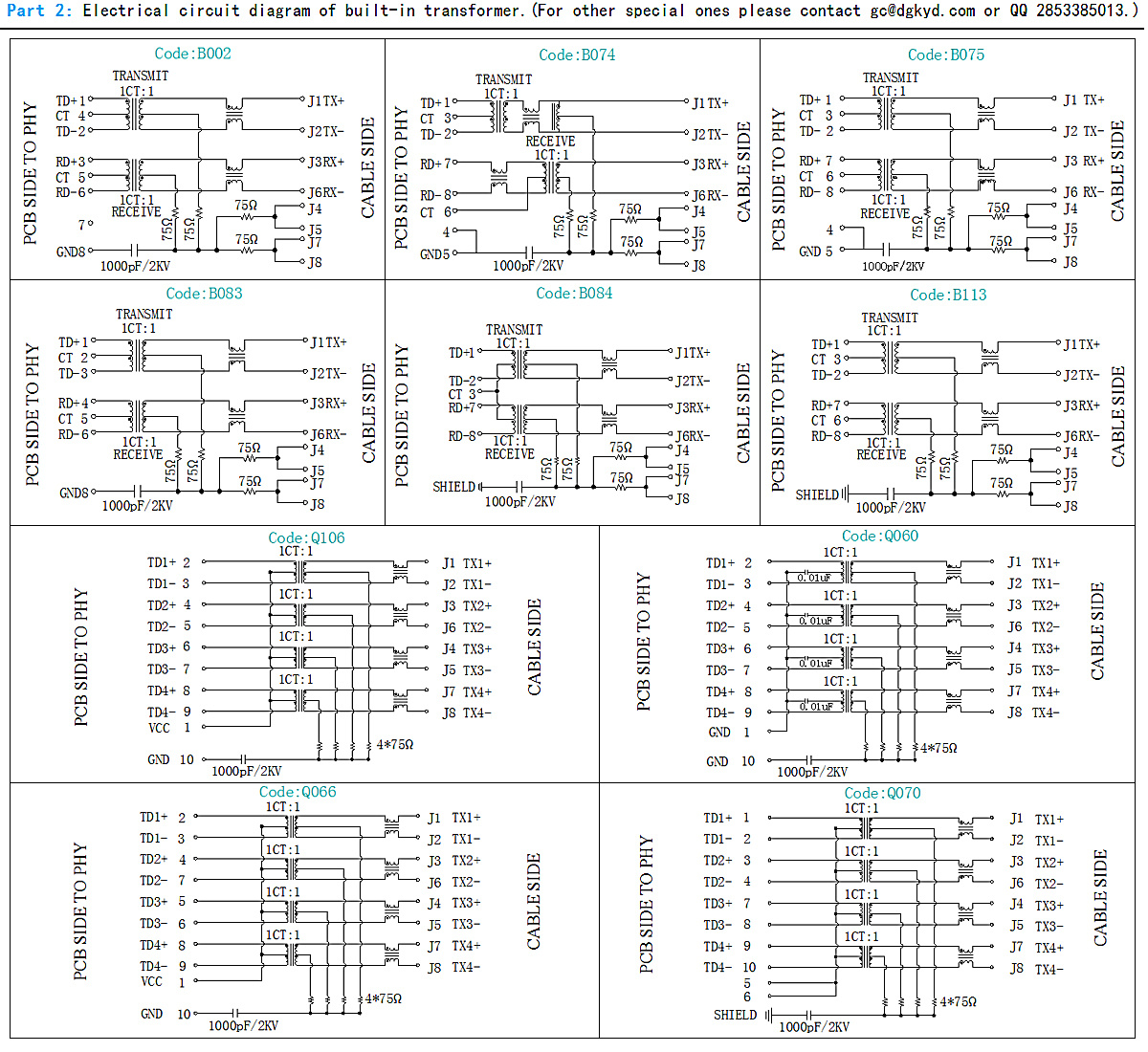

Integrated transformer:

No

Turns Ratio RX:

No

Main electrical parameters:

Open/Short test pass.

LED option:

Yes, L-Yellow/Orange / R-Green

Contact Mating Area Plating:

Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''

Shield EMI Tabs:

No

Working temperature:

0 - 85 degree Celsius or -40 - 85 degree Celsius.

Storage temperature:

-40 - 85 degree Celsius

Suitable for welding type :

Wave-soldering(Normal) or Reflowsolding(Alternative).

Product standard:

Meets IEEE 802.3 specification.

RoHS Compliant:

Yes.

REACH Compliant:

Yes.

Quality as surance:

Electrical performance and Led 200% test passed.

Technical advisory work:

Email to gc@dgkyd.com or kyd@dgkyd.com.

Download instructions:

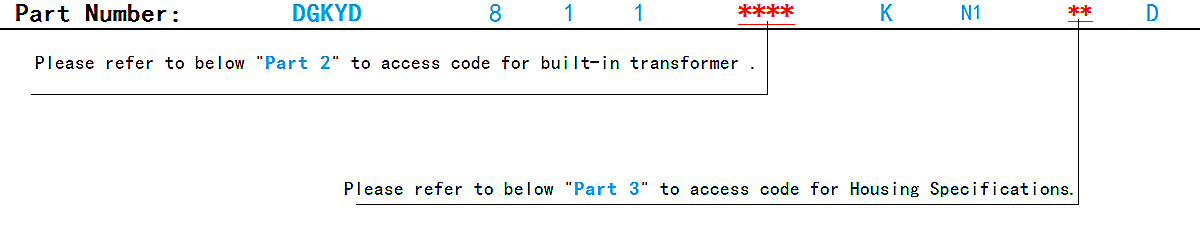

01:DGKYD811Q008KN1A10DA

Members 'Notes:

If you want to download the product engineering drawings, please register online first to become our member. Only advanced members upgraded by DGKYD can obtain the download permission. Or you can send an email to gc@dgkyd.com directly to obtain the drawings.

Download instructions::

If you need to download product engineering drawings, please log in to become a member first, upgrade from DGKYD to senior member before you can obtain download permission, or contact email (gc@dgkyd.com) directly to obtain drawings.

  • 产品描述
    • Commodity name: RJ45 Single Port;TAB-UP ; L=24.13mm ; With LED ; Without metal shield . PCB Retaining Post :solid(Type A)
    • Commodity ID: 00550
    • Connector type: RJ45
    • Number of Ports: single ports
    • Clamp direction: TAB-UP
    • Integrated transformer: No
    • Turns Ratio RX: No
    • Main electrical parameters: Open/Short test pass.
    • LED option: Yes, L-Yellow/Orange / R-Green
    • Contact Mating Area Plating: Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
    • Shield EMI Tabs: No
    • Working temperature: 0 - 85 degree Celsius or -40 - 85 degree Celsius.
    • Storage temperature: -40 - 85 degree Celsius
    • Suitable for welding type : Wave-soldering(Normal) or Reflowsolding(Alternative).
    • Product standard: Meets IEEE 802.3 specification.
    • RoHS Compliant: Yes.
    • REACH Compliant: Yes.
    • Quality as surance: Electrical performance and Led 200% test passed.
    • Technical advisory work: Email to gc@dgkyd.com or kyd@dgkyd.com.
    • Download instructions: 01:DGKYD811Q008KN1A10DA
    • Members 'Notes: If you want to download the product engineering drawings, please register online first to become our member. Only advanced members upgraded by DGKYD can obtain the download permission. Or you can send an email to gc@dgkyd.com directly to obtain the drawings.
