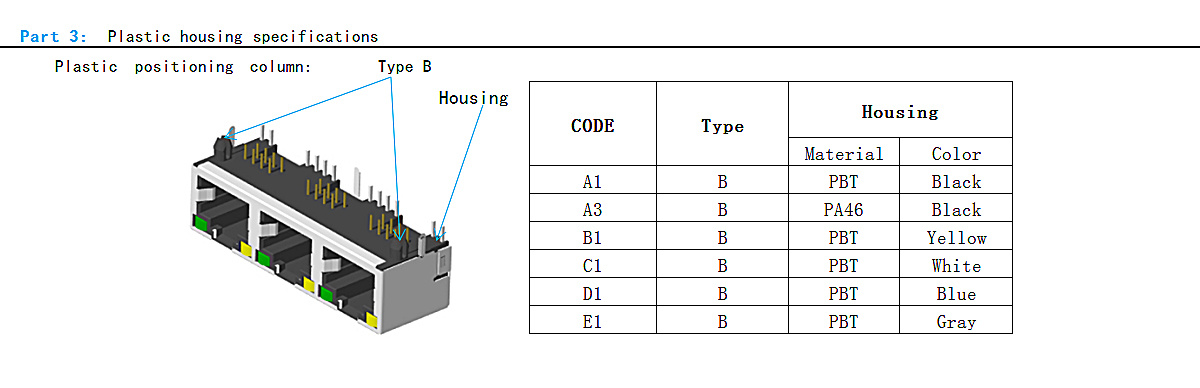

RJ45 56 ; 1X3 ports ; With LED ; With metal shield . PCB Retaining Post: hollow(Type B)
Connector type：
RJ45 56
Number of Ports：
1X3 ports
Clamp direction：
TAB-UP
Integrated transformer：
No.
Turns Ratio RX：
No.
Main electrical parameters：
Open/Short test pass.

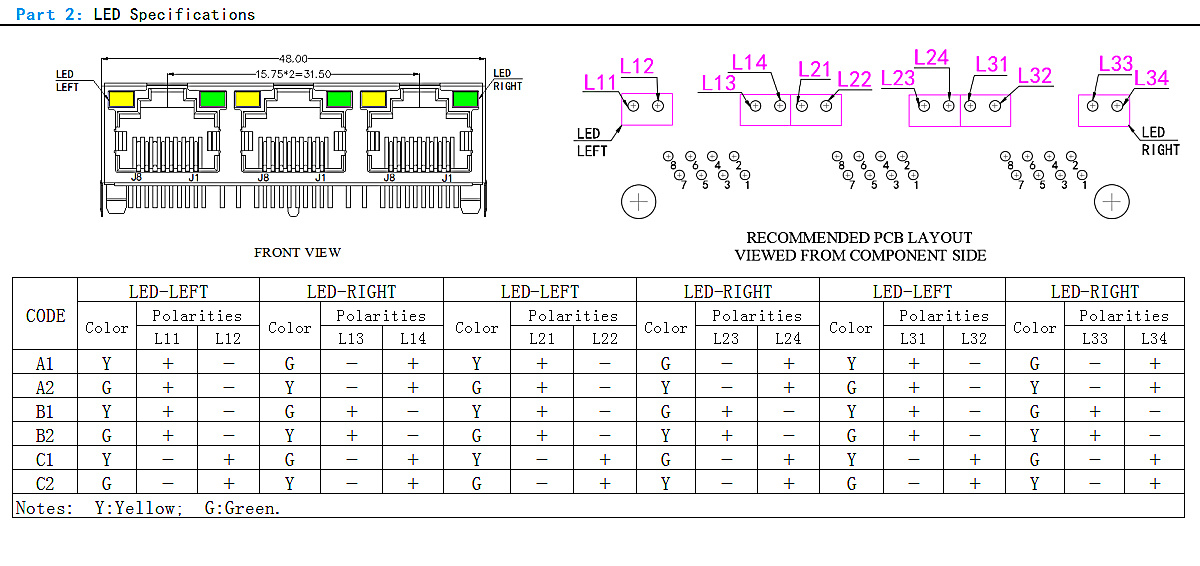

LED option：
Yes, L-Yellow / R-Green
Contact Mating Area Plating：
Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
Shield EMI Tabs：
Yes.
Working temperature：
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature：
-40 - 85 degree Celsius
Suitable for welding type ：
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard：
Meets IEEE 802.3 specification.
RoHS Compliant：
Yes.
REACH Compliant：
Yes.
Quality as surance：
Electrical performance and Led 200% test passed.
Technical advisory work：
Email to gc@dgkyd.com or kyd@dgkyd.com.
Download instructions：

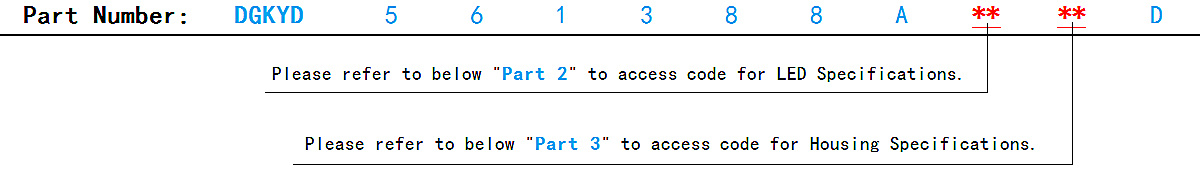

01:DGKYD561388AB1A1DY1
Members 'Notes：
lf you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.
Classification：
Download Instructions.：
To download the product engineering drawings, please log in as a member first and upgrade from DGKYD to senior member before you can get the download permission, or directly contact the email (gc@dgkyd.com) to get the drawings.
- 产品描述
-
- Commodity name: RJ45 56 ; 1X3 ports ; With LED ; With metal shield . PCB Retaining Post: hollow(Type B)
- Commodity ID: 657
- Connector type: RJ45 56
- Number of Ports: 1X3 ports
- Clamp direction: TAB-UP
- Integrated transformer: No.
- Turns Ratio RX: No.
- Main electrical parameters: Open/Short test pass.
- LED option: Yes, L-Yellow / R-Green
- Contact Mating Area Plating: Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
- Shield EMI Tabs: Yes.
- Working temperature: 0 - 85 degree Celsius or -40 - 85 degree Celsius.
- Storage temperature: -40 - 85 degree Celsius
- Suitable for welding type : Wave-soldering(Normal) or Reflowsolding(Alternative).
- Product standard: Meets IEEE 802.3 specification.
- RoHS Compliant: Yes.
- REACH Compliant: Yes.
- Quality as surance: Electrical performance and Led 200% test passed.
- Technical advisory work: Email to gc@dgkyd.com or kyd@dgkyd.com.
- Download instructions: 01:DGKYD561388AB1A1DY1
- Members 'Notes: lf you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.
Key words:- RJ45
- TAB-UP
- DIP
- Without transformer
- With shield
