RJ45 Single Port；TAB-UP ; L=24.13mm ; Without LED ; With metal shield (EMI Fingers) . PCB Retaining Post :solid(Type A)
Connector type：
RJ45
Number of Ports：
Single Port
Clamp direction：
TAB-UP
Integrated transformer：
10/100/1000M Base-T/TX
Turns Ratio RX：
1CT : 1
Main electrical parameters：
350um Minimum OCL with 8mA bias current.
LED option：
No.
Contact Mating Area Plating：
Gold 6/15/30/50 Microinch
Shield EMI Tabs：
Yes.
Working temperature：
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature：
-40 - 85 degree Celsius
Suitable for welding type ：
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard：
Meets IEEE 802.3 specification.
RoHS Compliant：
Yes.
REACH Compliant：
Yes.
Quality as surance：
Electrical performance 200% test passed.
Technical advisory work：
Email to gc@dgkyd.com or kyd@dgkyd.com.
Download instructions：

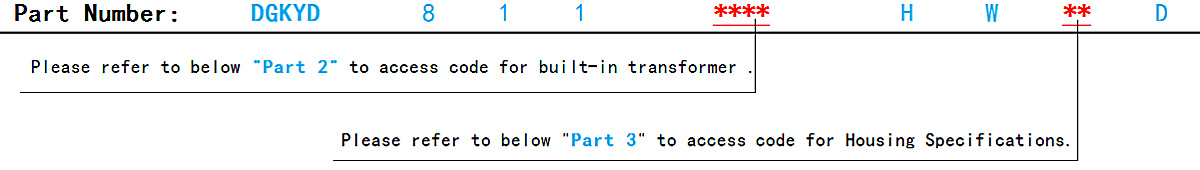

01：DGKYD811Q008HWA2DC057-1
Members 'Notes：
If you want to download the product engineering drawings, please register online first to become our member. Only advanced members upgraded by DGKYD can obtain the download permission. Or you can send an email to gc@dgkyd.com directly to obtain the drawings.
Classification：
Download Instructions.：
To download the product engineering drawings, please log in as a member first and upgrade from DGKYD to senior member before you can get the download permission, or directly contact the email (gc@dgkyd.com) to get the drawings.
- 产品描述
-
- Commodity name: RJ45 Single Port；TAB-UP ; L=24.13mm ; Without LED ; With metal shield (EMI Fingers) . PCB Retaining Post :solid(Type A)
- Commodity ID: 066
- Connector type: RJ45
- Number of Ports: Single Port
- Clamp direction: TAB-UP
- Integrated transformer: 10/100/1000M Base-T/TX
- Turns Ratio RX: 1CT : 1
- Main electrical parameters: 350um Minimum OCL with 8mA bias current.
- LED option: No.
- Contact Mating Area Plating: Gold 6/15/30/50 Microinch
- Shield EMI Tabs: Yes.
- Working temperature: 0 - 85 degree Celsius or -40 - 85 degree Celsius.
- Storage temperature: -40 - 85 degree Celsius
- Suitable for welding type : Wave-soldering(Normal) or Reflowsolding(Alternative).
- Product standard: Meets IEEE 802.3 specification.
- RoHS Compliant: Yes.
- REACH Compliant: Yes.
- Quality as surance: Electrical performance 200% test passed.
- Technical advisory work: Email to gc@dgkyd.com or kyd@dgkyd.com.
- Download instructions: 01：DGKYD811Q008HWA2DC057-1
- Members 'Notes: If you want to download the product engineering drawings, please register online first to become our member. Only advanced members upgraded by DGKYD can obtain the download permission. Or you can send an email to gc@dgkyd.com directly to obtain the drawings.
