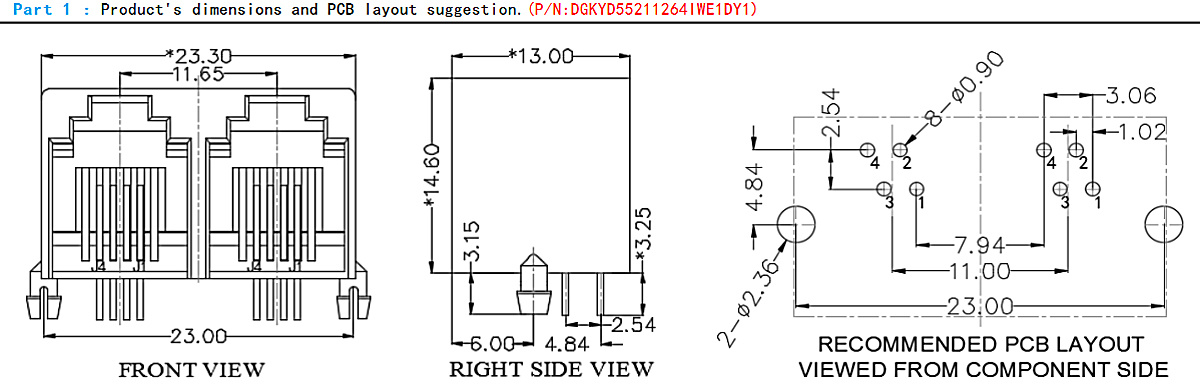

RJ12 5521 ; Double port ; 6P4C ; Without LED ; Without metal shield . PCB Retaining Post: hollow(Type B)

Connector type:

RJ12 5521

Number of Ports:

Double port

Clamp direction:

TAB-UP

Integrated transformer:

No.

Turns Ratio RX:

No.

Main electrical parameters:

Open/Short test pass.

LED option:

No.

Contact Mating Area Plating:

Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''

Shield EMI Tabs:

No.

Working temperature:

0 - 85 degree Celsius or -40 - 85 degree Celsius.

Storage temperature:

-40 - 85 degree Celsius

Suitable for welding type :

Wave-soldering(Normal) or Reflowsolding(Alternative).

Product standard:

Meets IEEE 802.3 specification.

RoHS Compliant:

Yes.

REACH Compliant:

Yes.

Quality as surance:

Electrical performance 200% test passed.

Technical advisory work:

Email to gc@dgkyd.com or kyd@dgkyd.com.

Download instructions:

01:DGKYD55211264IWE1DY1017

Members 'Notes:

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Download Instructions.:

To download the product engineering drawings, please log in as a member first and upgrade from DGKYD to senior member before you can get the download permission, or directly contact the email (gc@dgkyd.com) to get the drawings.

  • 产品描述
    • Commodity name: RJ12 5521 ; Double port ; 6P4C ; Without LED ; Without metal shield . PCB Retaining Post: hollow(Type B)
    • Commodity ID: 02770
    • Connector type: RJ12 5521
    • Number of Ports: Double port
    • Clamp direction: TAB-UP
    • Integrated transformer: No.
    • Turns Ratio RX: No.
    • Main electrical parameters: Open/Short test pass.
    • LED option: No.
    • Contact Mating Area Plating: Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
    • Shield EMI Tabs: No.
    • Working temperature: 0 - 85 degree Celsius or -40 - 85 degree Celsius.
    • Storage temperature: -40 - 85 degree Celsius
    • Suitable for welding type : Wave-soldering(Normal) or Reflowsolding(Alternative).
    • Product standard: Meets IEEE 802.3 specification.
    • RoHS Compliant: Yes.
    • REACH Compliant: Yes.
    • Quality as surance: Electrical performance 200% test passed.
    • Technical advisory work: Email to gc@dgkyd.com or kyd@dgkyd.com.
    • Download instructions: 01:DGKYD55211264IWE1DY1017
    • Members 'Notes: If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.
