RJ45 8P8C Male to RJ45 8P8C Female  Connector ; Without metal shield .

Connector type:

RJ45  Male to  Female Connector

Number of Ports:

Single Port

Main electrical parameters:

Open/Short test pass.

Contact Mating Area Plating:

Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''

Working temperature:

0 - 85 degree Celsius or -40 - 85 degree Celsius.

Storage temperature:

-40 - 85 degree Celsius

RoHS Compliant:

Yes.

REACH Compliant:

Yes.

Quality as surance:

Electrical performance 200% test passed.

Technical advisory work:

Email to gc@dgkyd.com or kyd@dgkyd.com.

Download instructions:

01:DGKYDZJT020035WH008(白色)

Members 'Notes:

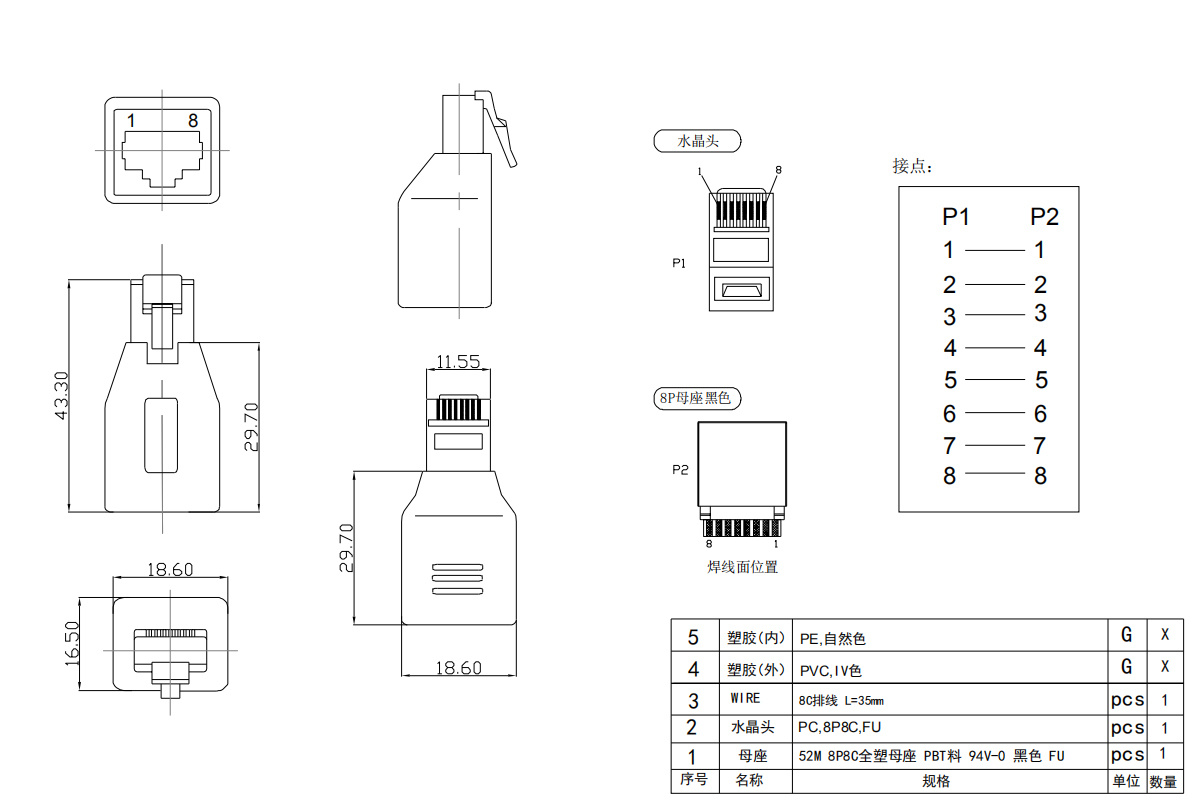

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Download instructions::

If you need to download product engineering drawings, please log in to become a member first, upgrade from DGKYD to senior member before you can obtain download permission, or contact email (gc@dgkyd.com) directly to obtain drawings.

  • 产品描述
    • Commodity name: RJ45 8P8C Male to RJ45 8P8C Female  Connector ; Without metal shield .
    • Commodity ID: 04920
    • Connector type: RJ45  Male to  Female Connector
    • Number of Ports: Single Port
    • Main electrical parameters: Open/Short test pass.
    • Contact Mating Area Plating: Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
    • Working temperature: 0 - 85 degree Celsius or -40 - 85 degree Celsius.
    • Storage temperature: -40 - 85 degree Celsius
    • RoHS Compliant: Yes.
    • REACH Compliant: Yes.
    • Quality as surance: Electrical performance 200% test passed.
    • Technical advisory work: Email to gc@dgkyd.com or kyd@dgkyd.com.
    • Download instructions: 01:DGKYDZJT020035WH008(白色)
    • Members 'Notes: If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

    Key words:
    • RJ coupler
