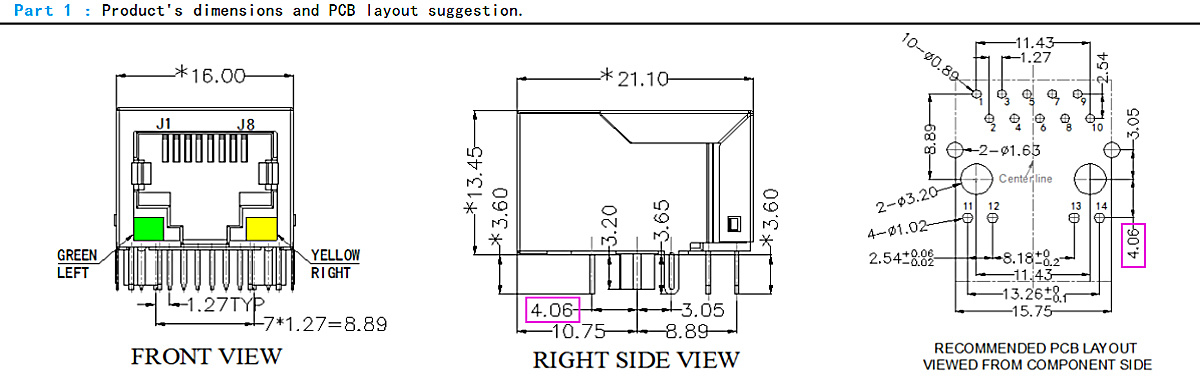

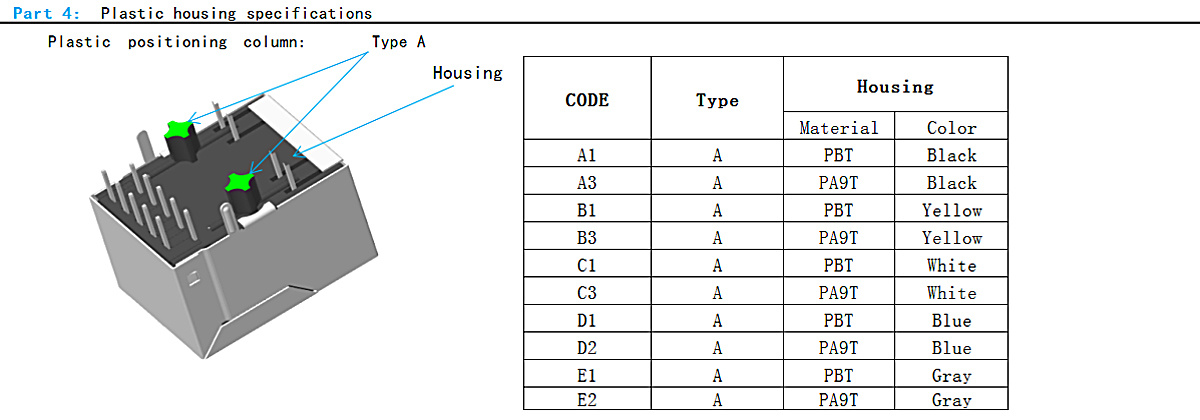

RJ45 2.5G ; Single Port ; TAB-DOWN ; L=21.3mm ; With LED ;With metal shield . PCB Retaining Post :solid(Type A)
Number of views:
1009

RJ45 2.5G ; Single Port ; TAB-DOWN ; L=21.3mm ; With LED ;With metal shield . PCB Retaining Post :solid(Type A)

Connector type:
RJ45
Number of Ports:
Single Port
Clamp direction:
TAB-DOWN

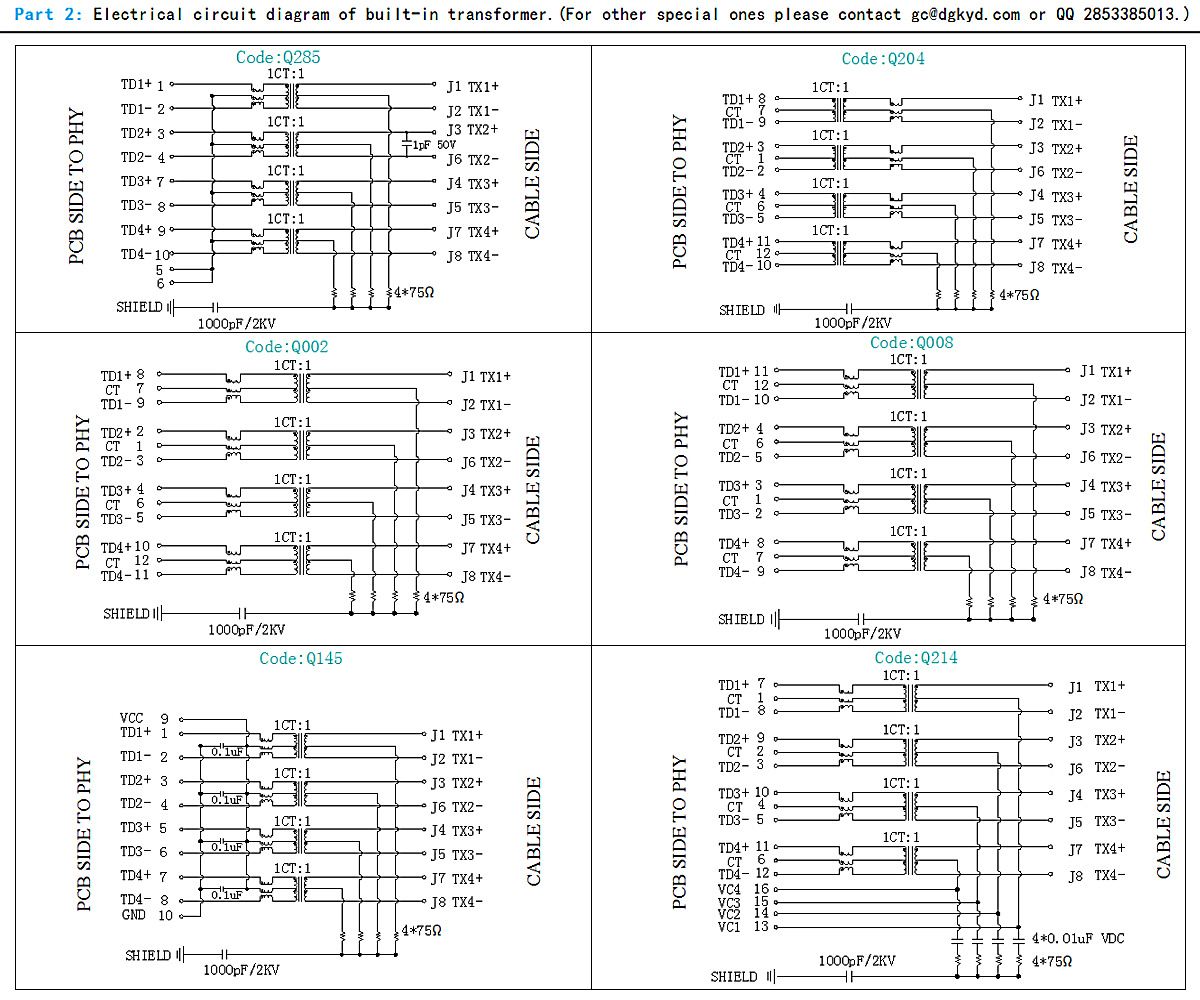

Integrated transformer:
2.5G/5G/10G Base-T/TX
Turns Ratio RX:
1CT : 1
Main electrical parameters:
350um Minimum OCL with 8mA bias current.

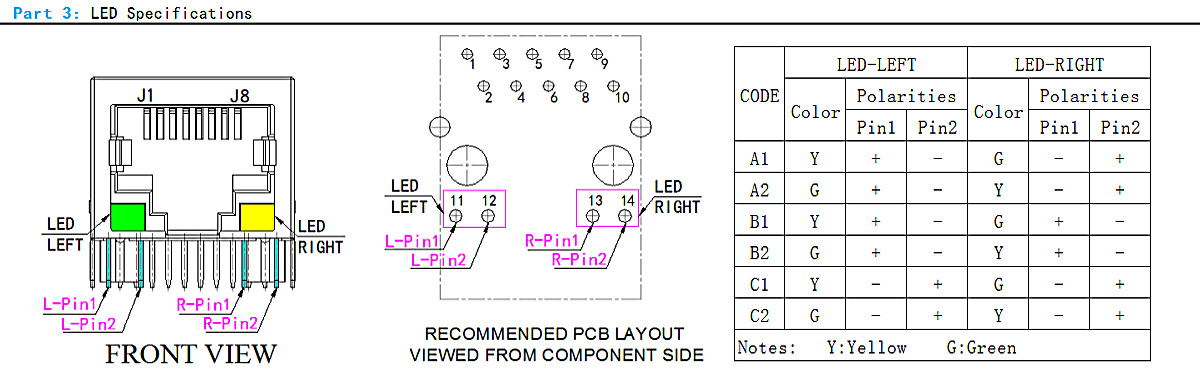

LED option:
Yes, L-Green / R-Yellow
Contact Mating Area Plating:
Gold 6/15/30/50 Microinch
Shield EMI Tabs:
Yes.
Working temperature:
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature:
-40 - 85 degree Celsius
Suitable for welding type :
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard:
Meets IEEE 802.3 specification.
RoHS Compliant:
Yes.
REACH Compliant:
Yes.
Quality as surance:
Electrical performance and Led 200% test passed.
Packing specification:
Technical advisory work:
Email to gc@dgkyd.com or kyd@dgkyd.com.
Notes:
Retail price
0.0
Market price
0.0
Number of views:
1009
Product serial number
204
Quantity
-
+
Stock:
0
1
介绍:
Download instructions:

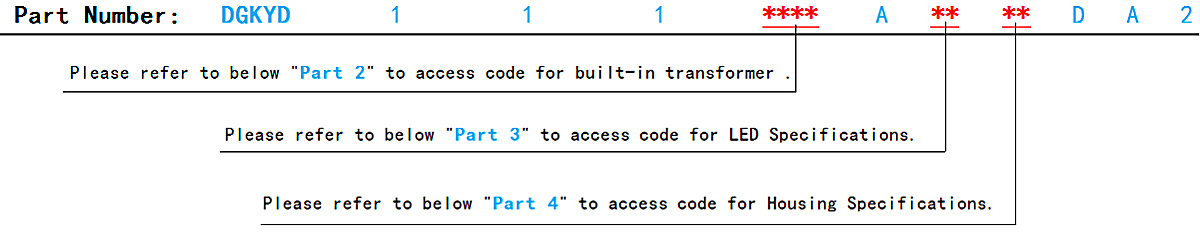

01:DGKYD111Q285AA2A1DA2(2.5G)

Members 'Notes:

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Product description
Parameters

















Keyword:
RJ45
1X1
TAB-DOWN
DIP
2.5G
With transformer
With shield
