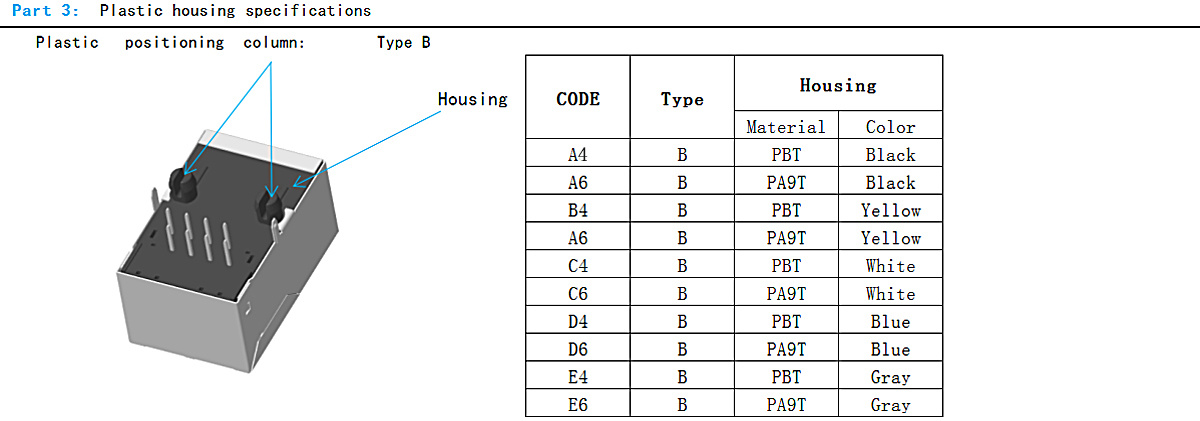

RJ45 Single Port;TAB-UP;L=25.4 mm ; Without LED ; With metal shield ;Meets IEEE 802.3 specification.PCB Retaining Post: hollow (Type B)
Number of views:
1005

RJ45 Single Port;TAB-UP;L=25.4 mm ; Without LED ; With metal shield ;Meets IEEE 802.3 specification.PCB Retaining Post: hollow (Type B)

Connector type:
RJ45
Number of Ports:
Single Port
Clamp direction:
TAB-UP

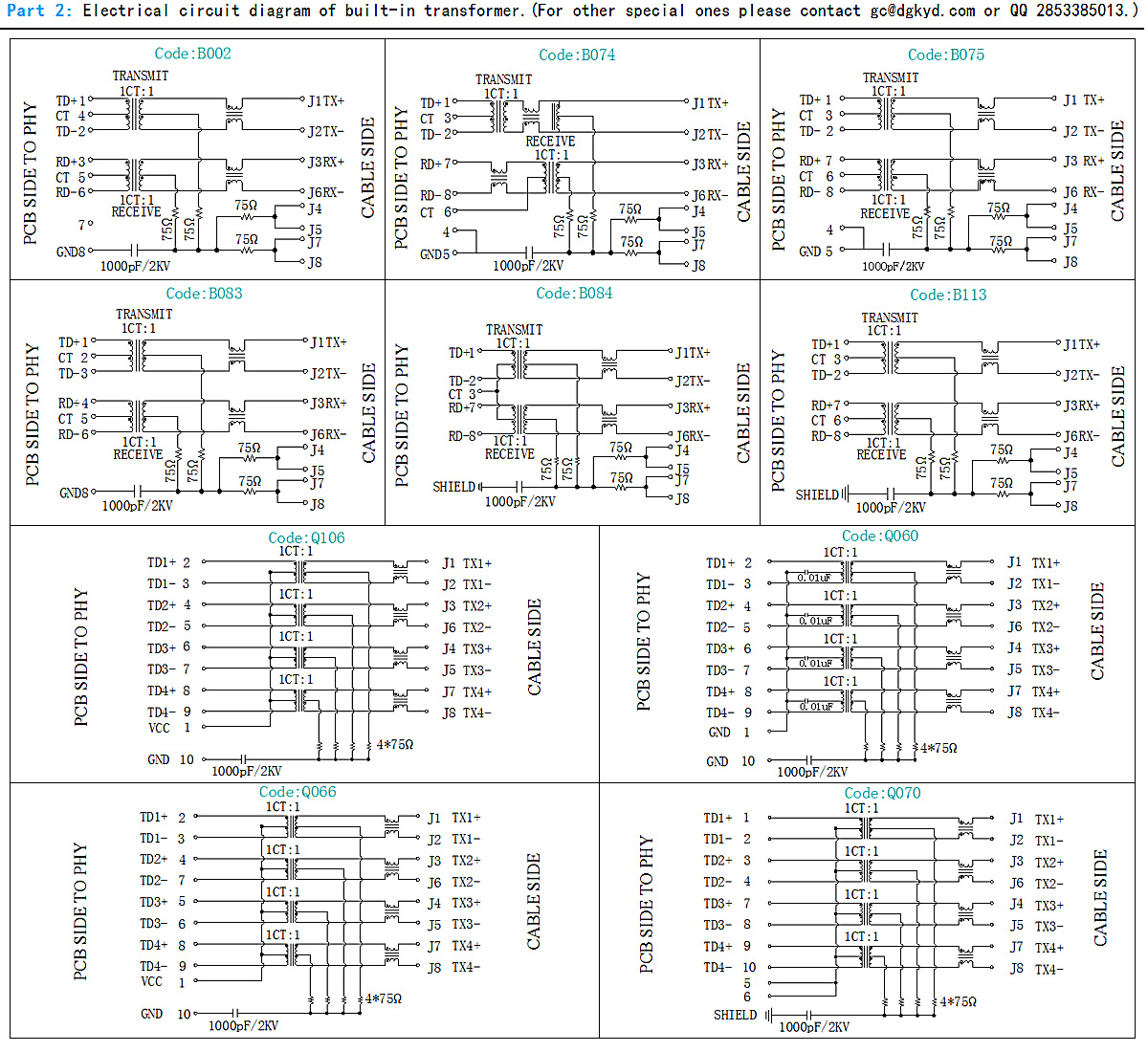

Integrated transformer:
10/100/1000M Base-T/TX
Turns Ratio RX:
1CT : 1
Main electrical parameters:
350um Minimum OCL with 8mA bias current.
LED option:
No.
Contact Mating Area Plating:
Gold 6/15/30/50 Microinch
Shield EMI Tabs:
Yes.
Working temperature:
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature:
-40 - 85 degree Celsius
Suitable for welding type :
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard:
Meets IEEE 802.3 specification.
RoHS Compliant:
Yes.
REACH Compliant:
Yes.
Quality as surance:
Electrical performance 200% test passed.
Packing specification:
S. W. ( g ):7.586; Quantity : 60pcs/Tray ;840pcs/Carton; G. W. ( kg ) : 7.67
Technical advisory work:
Email to gc@dgkyd.com or kyd@dgkyd.com.
Notes:
KRJ-060SHWWNL / KRJ-13SHWDNL / KRJ-111SHNL / KRJ-015SHWENL
Retail price
0.0
Market price
0.0
Number of views:
1005
Product serial number
031
Quantity
-
+
Stock:
0
1
介绍:

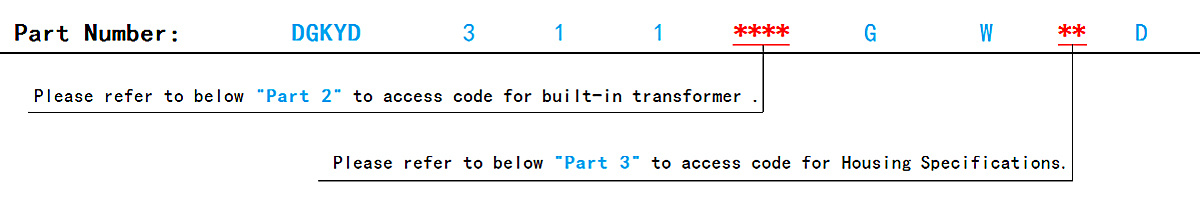

Download instructions:

01:DGKYD311B075GWA4DN

Members 'Notes:

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Product description
Parameters













Keyword:
RJ45
1X1
TAB-UP
DIP
POE
With transformer
With shield
