RJ45 ; Single Port ; TAB-UP ; SMT ; With LED ; With metal shield ; Meets IEEE 802.3 specification .
Number of views:
1016

RJ45 ; Single Port ; TAB-UP ; SMT ; With LED ; With metal shield ; Meets IEEE 802.3 specification .

Connector type:
RJ45
Number of Ports:
Single Port
Clamp direction:
TAB-UP

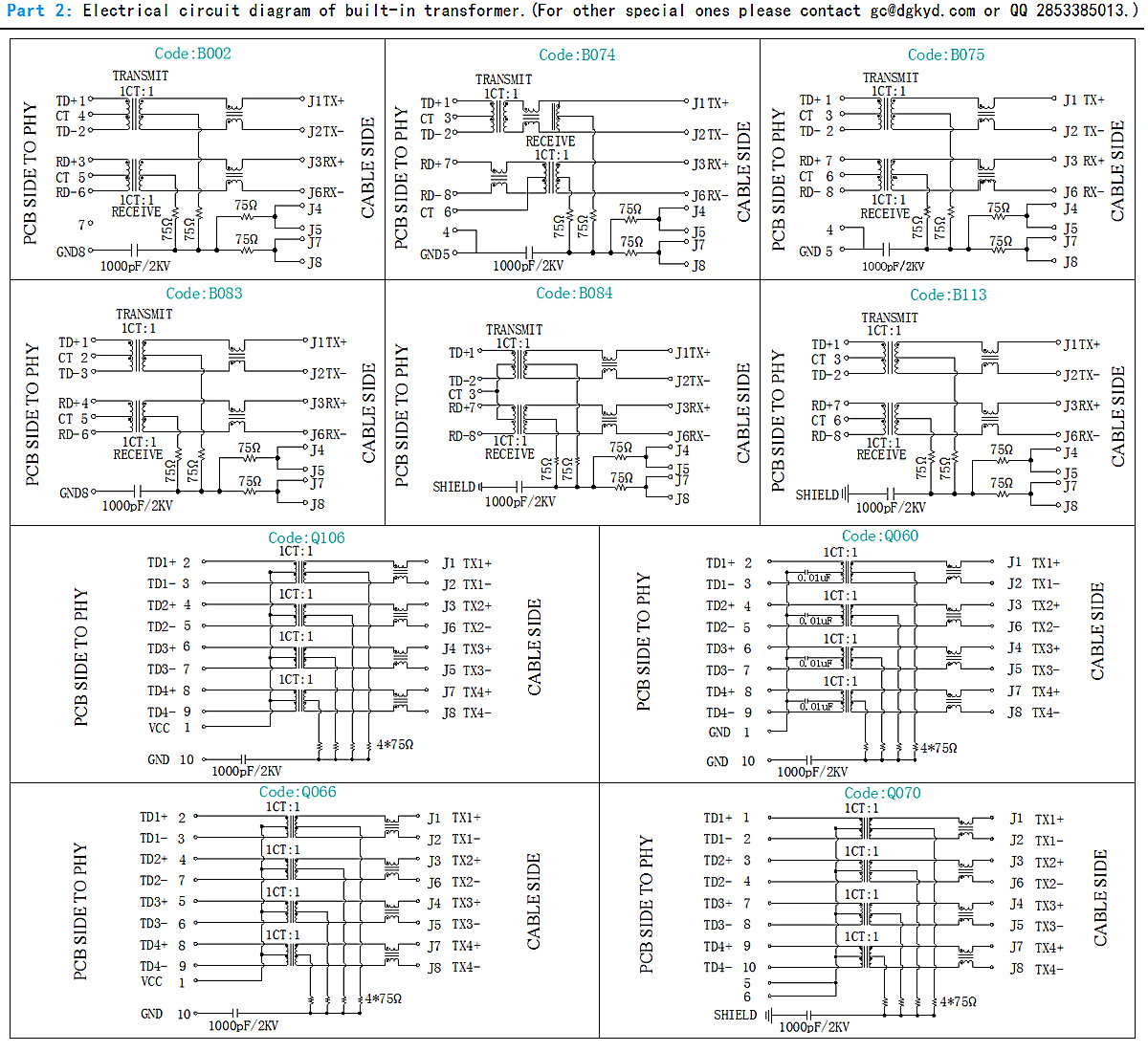

Integrated transformer:
10/100/1000M Base-T/TX
Turns Ratio RX:
1CT : 1
Main electrical parameters:
350um Minimum OCL with 8mA bias current.
LED option:
Yes, L-Green / R-Yellow
Contact Mating Area Plating:
Gold 6/15/30/50 Microinch
Shield EMI Tabs:
Yes.
Working temperature:
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature:
-40 - 85 degree Celsius
Suitable for welding type :
Reflowsolding(Alternative).
Product standard:
Meets IEEE 802.3 specification.
RoHS Compliant:
Yes.
REACH Compliant:
Yes.
Quality as surance:
Electrical performance and Led 200% test passed.
Packing specification:
Technical advisory work:
Email to gc@dgkyd.com or kyd@dgkyd.com.
Notes:
KRJ-SM002WNL
Retail price
0.0
Market price
0.0
Number of views:
1016
Product serial number
309
Quantity
-
+
Stock:
0
1
介绍:
Download instructions:

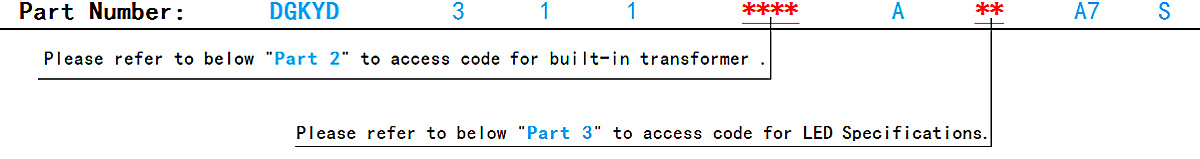

01:DGKYD311B093AA2A7S009

Members 'Notes:

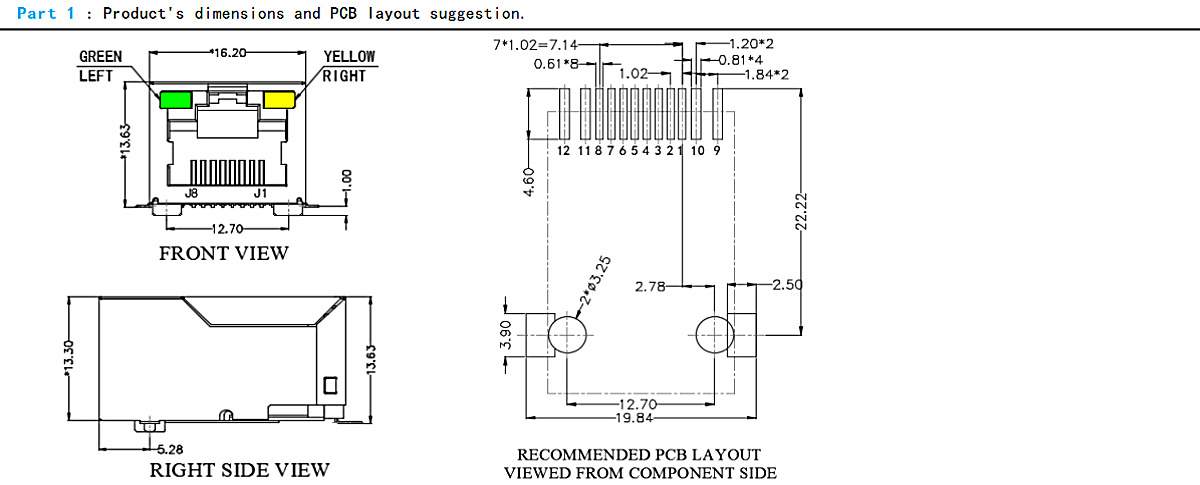

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Product description
Parameters













Keyword:
RJ45
1X1
TAB-UP
SMT
With transformer
With shield
Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table
