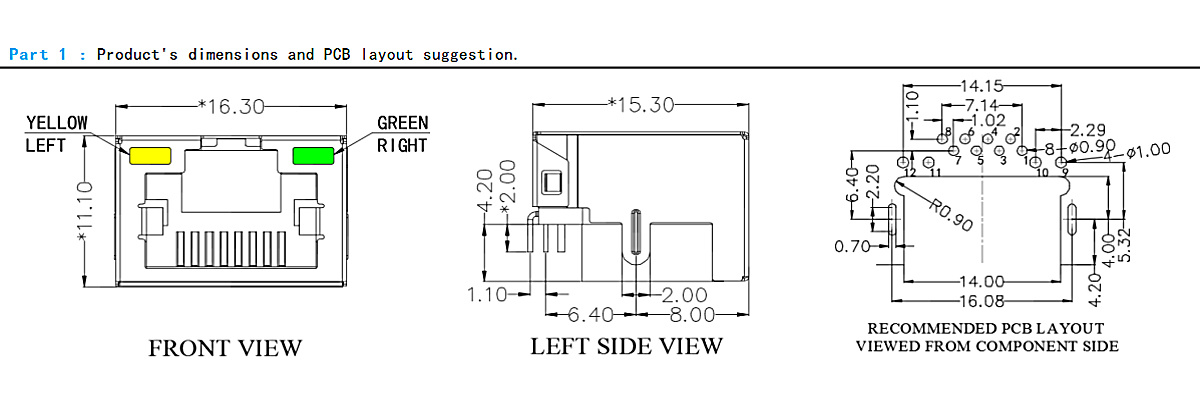

RJ45 ; Single Port ; TAB-UP ; Low profile 4.2mm DIP ; With LED ; With metal shield .
Number of views:
1012

RJ45 ; Single Port ; TAB-UP ; Low profile 4.2mm DIP ; With LED ; With metal shield .

Connector type:
RJ45
Number of Ports:
Single Port
Clamp direction:
TAB-UP
Integrated transformer:
No.
Turns Ratio RX:
No.
Main electrical parameters:
Open/Short test pass.

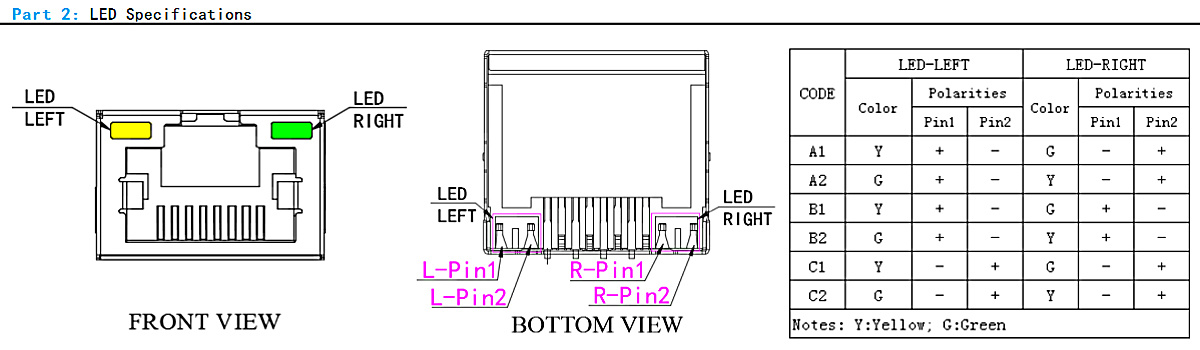

LED option:
Yes, L-Yellow / R-Green
Contact Mating Area Plating:
Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''
Shield EMI Tabs:
Yes.
Working temperature:
0 - 85 degree Celsius or -40 - 85 degree Celsius.
Storage temperature:
-40 - 85 degree Celsius
Suitable for welding type :
Wave-soldering(Normal) or Reflowsolding(Alternative).
Product standard:
Meets IEEE 802.3 specification.
RoHS Compliant:
Yes.
REACH Compliant:
Yes.
Quality as surance:
Electrical performance and Led 200% test passed.
Packing specification:
S . W. ( g ):2.75 ; Quantity : 100pcs/Tray ; 2000pcs/Carton; G. W. ( kg ) : 6.88
Technical advisory work:
Email to gc@dgkyd.com or kyd@dgkyd.com.
Notes:
KRJ-CB4.2YGZNL
Retail price
0.0
Market price
0.0
Number of views:
1012
Product serial number
335
Quantity
-
+
Stock:
0
1
介绍:
Download instructions:

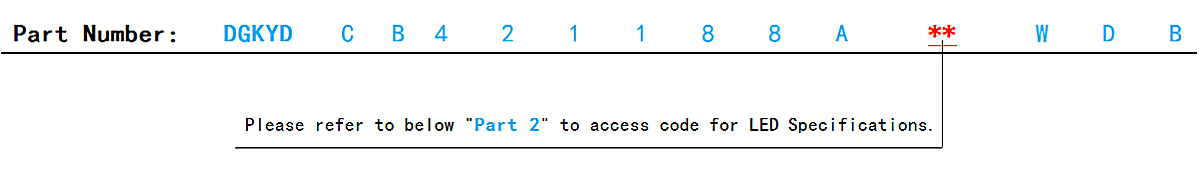

01:DGKYDCB421188AB1WDB1075

Members 'Notes:

If you want to download the product engineering drawings, please login to become a member and upgrade from DGKYD to advanced member to obtain the download permission, or contact gc@dgkyd.com directly to obtain the drawings.

Product description
Parameters







Keyword:
RJ45
1X1
TAB-UP
DIP
Without transformer
With shield
